A great big Thank You! goes out to BlueBMW for authoring this article and contributing the photographs (minor edits and additions by esteban). D-Lite scanned the manual. View the original article at the pcenginefx.com forums.
In the late 1980's—an instruction manual lists September of 1989, specifically—United Amusements (a company based in Los Angeles, California) produced "TurboGrafx-16" arcade units. They were designed to be retrofitted into an existing cabinet and allowed an arcade operator to run TurboGrafx-16 games in an arcade coin-op setup.
- Hardware Overview…
- Bastardized JAMMA…
- PCE (NOT TG-16) Hardware!
- Controller Input & Video…
- Interface Board…
- Closing Thoughts…
- A Brief Note on "Rarity"…
- United Amusements, Inc. (1982-1992)
HARDWARE OVERVIEW… ▲
The unit is mounted on a plate that, in turn, can be mounted in an arcade cabinet like any other PCB. It is not a particularly large unit.
It consists of three main parts: interface board (left), harness (upper left) and PC-Engine (far right).

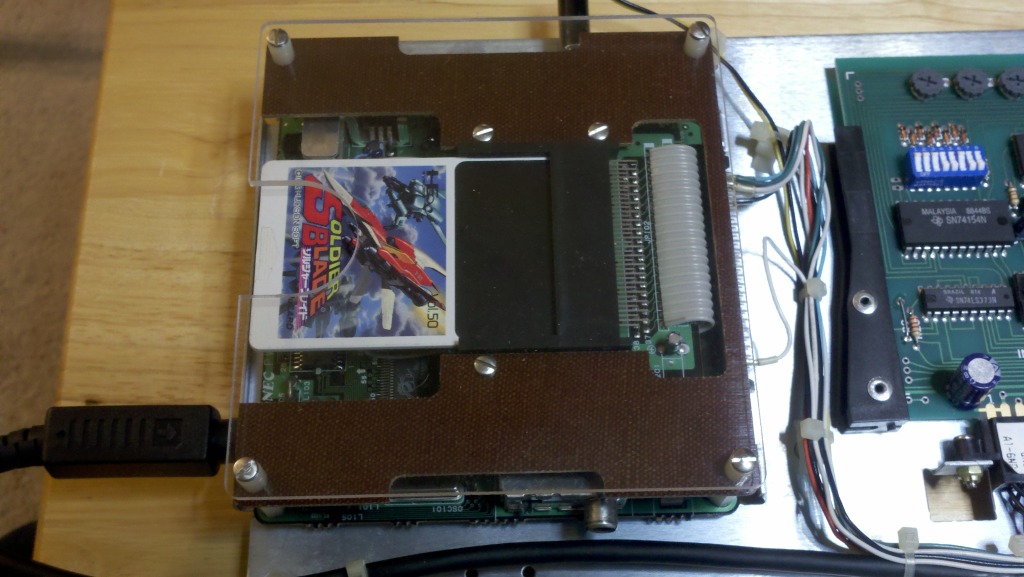

CLICK IMAGE TO ENLARGE: Note that the Japanese HuCard Soldier Blade (1992) is fully inserted into the PC-Engine on the far right.
BASTARDIZED JAMMA… ▲
Note that this is not truly a plug and play JAMMA unit. It uses a JAMMA harness that has been customized for the unit. In other words, you cannot simply plug the unit into the JAMMA harness of any arcade cabinet and expect it to function. The other end of the harness has loose wire ends for: coin input, speaker + and -, ground, +12v, +5v and -5v. It also has two large "AMP" connectors for the player 1 and 2 control panel connections.
CLICK TO ENLARGE: Untapped potential. This unit has wires for two players, though only player one is functional. Perhaps they were considering making a two player version later on. The instruction manual for the unit told of how to install this unit into several different popular cabinets of the time.

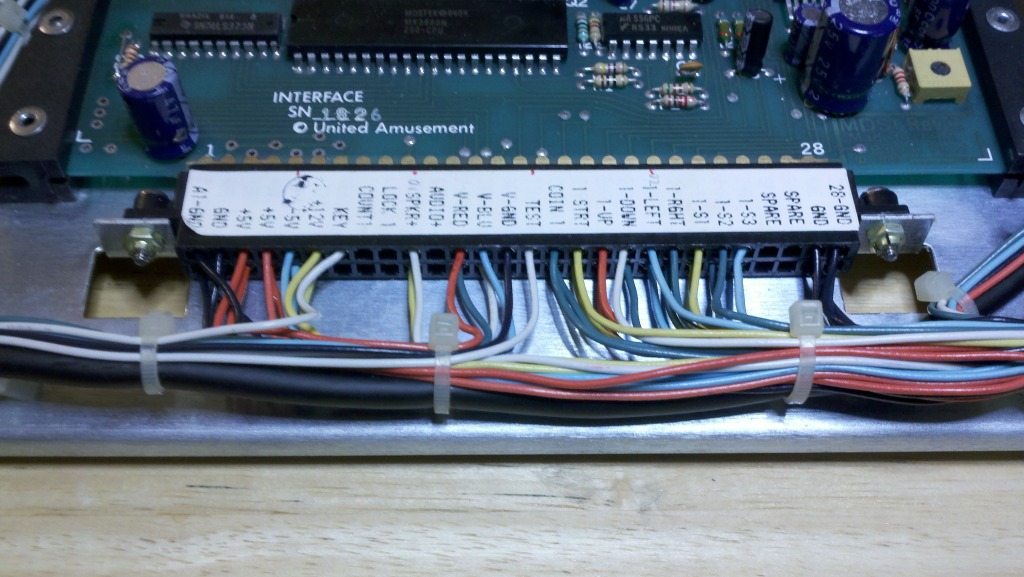

CLICK TO ENLARGE: Plug-n-Play. I wired the ends of this harness to a JAMMA fingerboard to make it plug and play JAMMA capable. While not the original intended method of installation, this allows the unit to be installed and uninstalled like any other arcade PCB. Notice I only wired the 1st player control panel wires in.
AT HEART, PC-ENGINE (NOT TG-16) HARDWARE! ▲
Despite its marketing as a "TurboGrafx-16"" kit, this unit actually uses a standard white (first generation) PC-Engine mainboard. It has been removed from its shell and mounted with screws and posts onto this unit. You can tell that it is an original white PC-Engine because of the RF out (visible in the first two photos below).
If the unit was advertised as a TurboGrafx-16 unit, how did it accommodate North American titles? Apparently the company that distributed this unit, United Amusements, also distributed games for it. From the pictures I have seen, they look like custom PCB's with ROM chips installed. I can assume the ROM chips held the game data and the PCB's served to convert North American games to run on the Japanese PCE hardware. NOTE: I have not tried US games through a converter board yet, so I do not know if the region lock pin is disabled or not.
The PC-Engine can be removed and used externally with a power cord, controller and RF unit or IFU.
Inside the unit, three connections are made: the controller input (bottom left), the power input (top middle), and the expansion port (center).

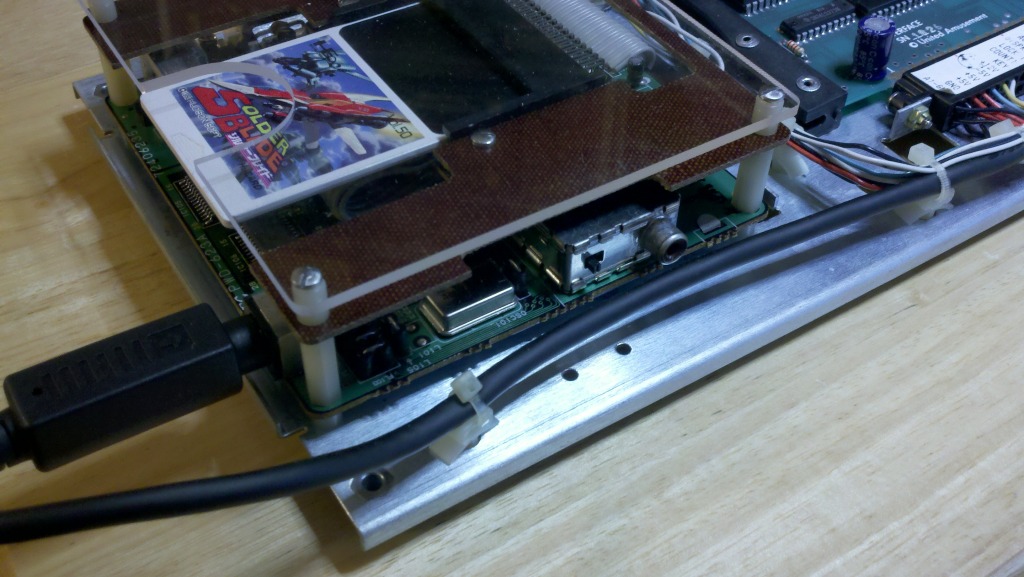

CLICK TO ENLARGE: VESTIGIAL STRUCTURE. As previously noted, the RF OUT (bottom center) is a tell-tale sign that this is a re-purposed first generation "white" PC-Engine. See next photo for a better view of RF OUT.
CLICK TO ENLARGE: Controller input. The controller input (bottom left) is a standard mini DIN8 cord that goes to the interface board (more on that later). It plugs in as a standard controller would. ALSO, this photograph provides a better view of the RF OUT and CHANNEL 3/4 SWITCH (center) found on the original PCE (and TurboGrafx-16) consoles.

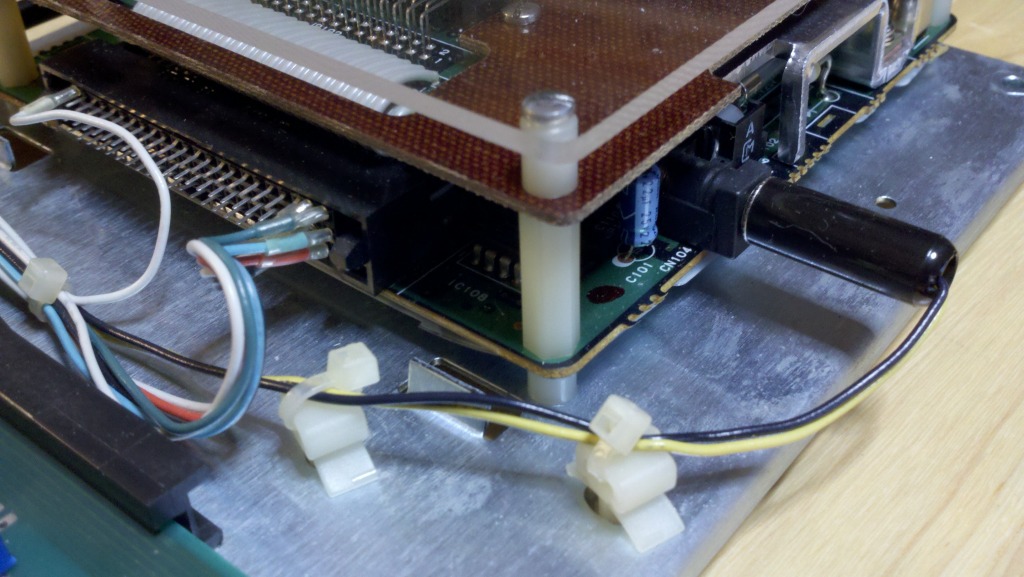

CLICK TO ENLARGE: Expansion port (left) and power input (right). The power port has a custom plug that is wired to the JAMMA edge at one of the 12V pins and one of the GND pins. The other 12V pin has a wire running from it for connection to the cabinet power supply.
Lastly, there is a custom made connector that plugs into the rear expansion port of the PC-Engine. The connector looks to be the same connector found in an IFU base, Super CD-ROM, or other accessory that plugs into the expansion port.
From what I can tell, the following connections are made:
- A1: Sound Right
- 21A : Ground
- 22B: Reset
- 22C: Sync
- 23A: Red
- 23B: Green
- 23C: Blue
- The Sound Right connection goes to the JAMMA edge of the interface board at the pin labelled "TEST"
- The Reset pin is connected to the JAMMA edge at pin "KEY"
- The 21A ground and the three video signals are connected to the JAMMA edge pins "V GND" "V-BLU" "V-GRN" and "V-RED"
So basically, the Interface unit inputs the Right channel audio, and the video data in via the JAMMA edge of the interface mainboard. The audio goes through an amplifier circuit complete with a volume pot and then goes out the JAMMA edge on the +/- speaker connection. There is some additional sound circuitry that adds sound to the sound output. Notably, when you turn the unit on, there is a loud beep sound through the cab speakers, and a chime. I understand these to be self test sounds. When a person's credit time reaches 30 seconds remaining, another chime will sound through the cab speakers to alert the player to insert more coins.
If no additional coins are inserted, the system resets and locks out the RUN button. I assume this is why there is a wire connected to the RESET pin on the PC-Engine rear interface.
CONTROLLER INPUT & VIDEO… ▲
The video enters the unit and is amplified with what looks like a transistor amp setup. There are trim pots for each color line also. It is output via a connector that plugs into the interface board. This connector has the standard arcade monitor input plug on the other end of it.

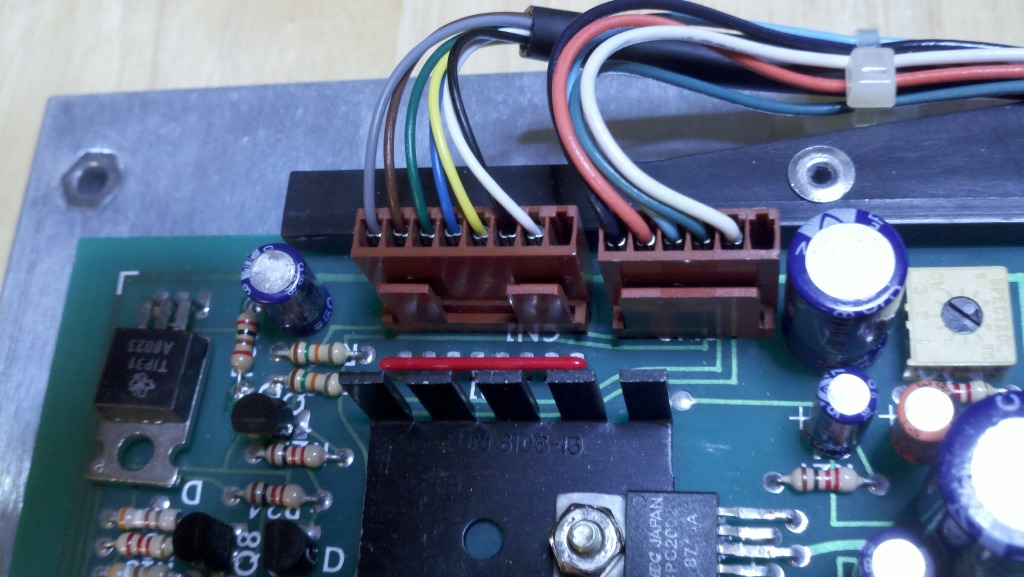

CLICK IMAGE TO ENLARGE: In the picture above, the video out connection is on the right and the controller input connection is on the left. Notice there is no red wire on the controller input…
Speaking of the controller input, I traced back much of the circuit for the control panel connection. Basically the control panel buttons and joysticks connect to the JAMMA edge of the interface unit. All the buttons/joystick connections (except the START button) connect to an NTE74157 chip, which is the same chip that is used in TG-16/PCE controllers to convert 8 inputs into 4 wire output.
The START button, however, takes a different path... It goes to a switch chip of sorts. From what I can tell, it is connected or disconnected based on the coin-op status of the unit. The unit uses a timer for gameplay. When you do not have play time, the START button is disconnected and is thus locked out. The START button is the RUN button on the TG-16/PCE.

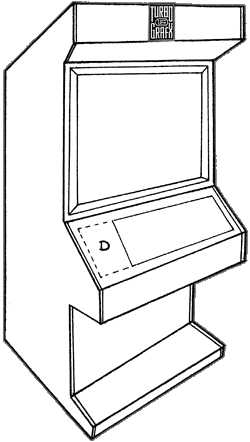

Here's a general diagram I drew up of how it connects. I've cut out the START button's control circuit and connected it directly to the final pin on the NTE74157 chip it ends up at:
CLICK TO ENLARGE: It seems that this same setup could be used to connect an arcade style controller to a standard TG-16/PCE console.
INTERFACE BOARD… ▲
Here are some scans of the interface board:

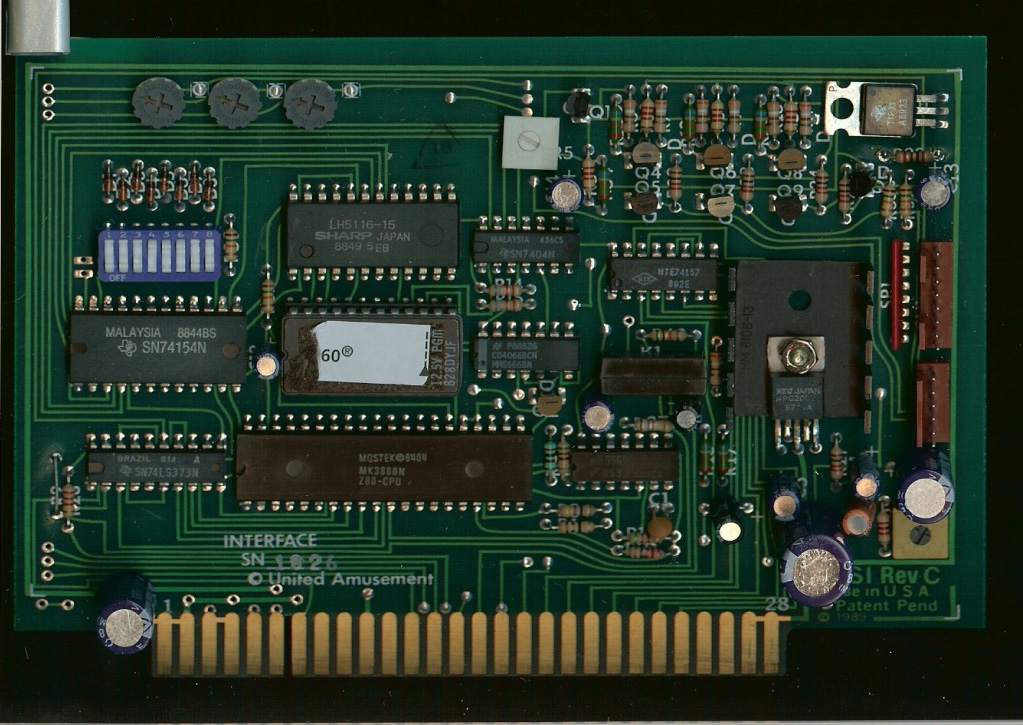

CLICK IMAGE TO ENLARGE: Top of interface board.

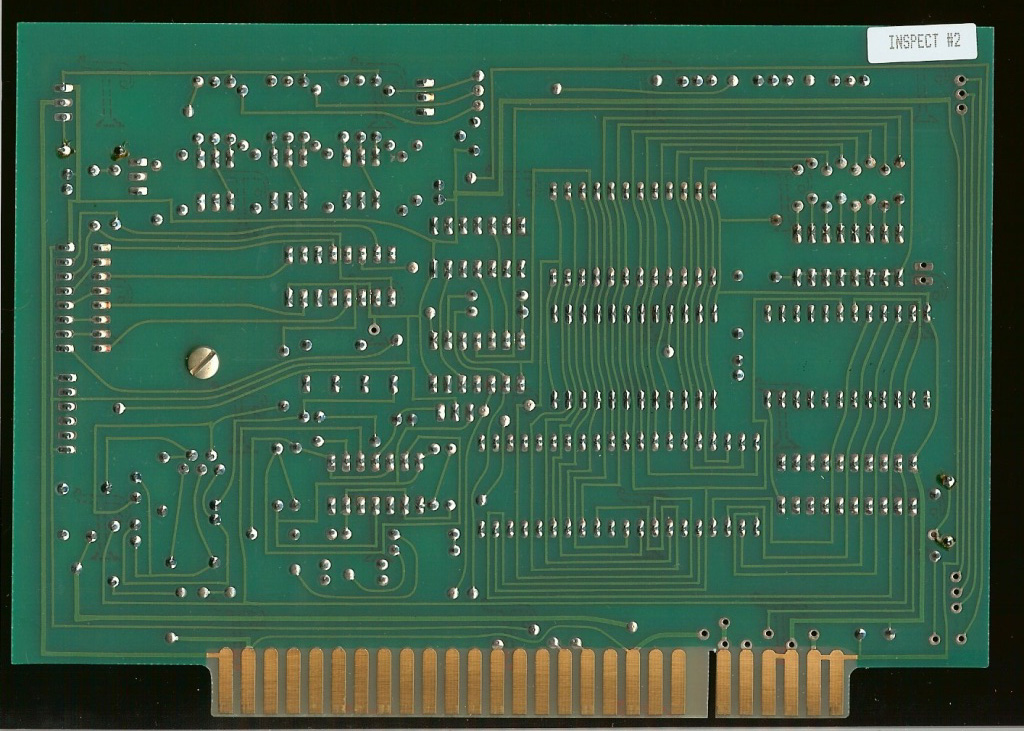

CLICK IMAGE TO ENLARGE: Bottom of interface board.
CLOSING THOUGHTS… ▲
All-in-all the TurboGrafx-16 JAMMA Unit is a neat setup. The coin operation stuff is particularly unique! As far as a unit to use for regular play, well, there are some concerns and shortcomings:
- One player only—What is the fun of playing on a cabinet if you cannot squeeze a second person in there for some glorious two-player action?
- Mono sound—In keeping to JAMMA standards, the unit is only set up for mono sound, which is a shame because many PCE/TG-16 titles take full advantage of stereo sound (for example, consider Dungeon Explorer).
- No Turbo Switches—There does not appear to be any circuitry to support turbo switches on the I and II buttons. Again, this is a shame, because the three-position, variable turbo switches are a standard on all PCE/TG-16 hardware and were one of its unique attributes. Functionality has been stripped, once again.
- Rarity—These seem to be pretty uncommon units. They occasionally appear on auction sites/sales threads.
- Durability—The units are quite old. Although it seems to be a robust setup, regular use my shorten its usable life.
A BRIEF NOTE ON "RARITY"… ▲
Note: If you can help improve the accuracy of this section, please contact us!
I am not certain how many of these units were built, nor do I know how many still exist today. I speculate that at least 100 (perhaps a couple thousand) units were produced, though I have no information to support this assertion. The unit does not appear to be prototype quality. Unfortunately, the serial numbers on the units and warranty cards do not provide any useful clues on the actual production numbers. That said, they seem to be uncommon, making only occasional appearances in the market and/or private collections.
